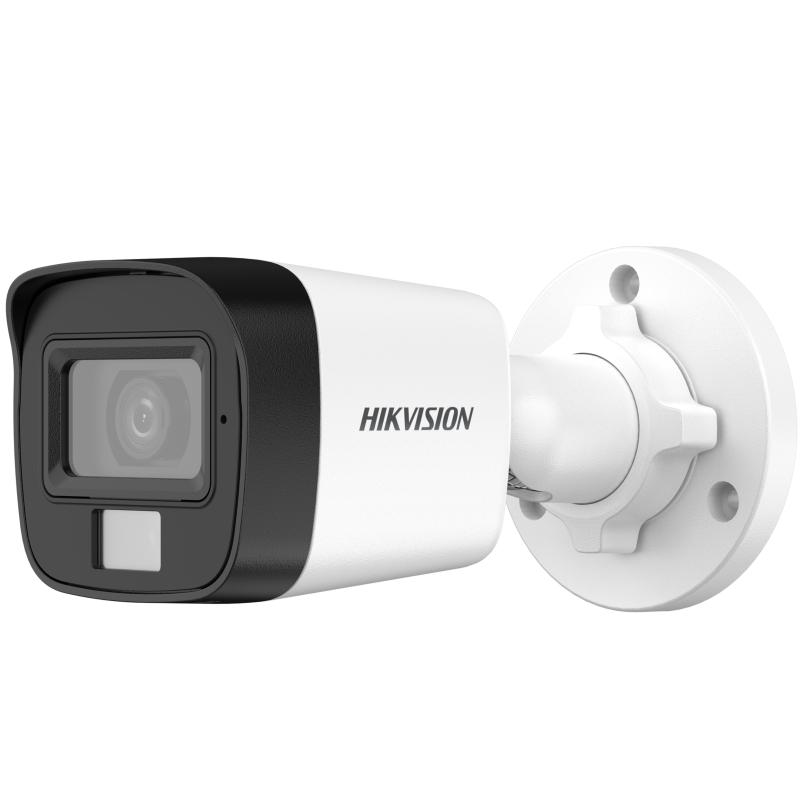

DS-2CE16D0T-EXLPF

2MP Smart Hybrid Light Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution

• Smart-Hybrid light, optimize your security with flexible lighting options

• 2.8 mm, 3.6 mm fixed focal lens

• Up to 20 m IR distance for bright night imaging

• Up to 20 m white light distance for bright night imaging

• One port for 4 switchable signals (TVI/AHD/CVI/CVBS)

• Water and dust resistant (IP67)

Specification

• Camera

• Image Sensor2 MP CMOS

• Max. Resolution1920 (H) × 1080 (V)

• Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR

• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

• Day & NightICR

• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°

• Signal SystemPAL/NTSC

• Lens

• Lens Type2.8 mm, 3.6 mm fixed focal lens

• Focal Length & FOV

  2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°

• Lens MountM12

• Illuminator

• Supplement Light TypeSmart,IR,White Light

• Supplement Light Range

  IR : Up to 20 m

  White Light : Up to 20 m

• Image

• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT

• Image SettingsBrightness, Sharpness, Smart IR

• Frame Rate

  TVI: 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 1080p @ 30 fps, 1080p @ 25 fps

  CVI: 1080p @ 30 fps, 1080p @ 25 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color

• Wide Dynamic Range (WDR)Digital WDR

• Image EnhancementDWDR/BLC/HLC/Global

• White BalanceAuto/Manual

• AGCYes

• Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General

• MaterialPlastic

• DimensionØ70 mm × 138.8 mm (Ø2.76" x 5.46")

• WeightMax. 150 g (0.33 lb.)

• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)

• CommunicationHIKVISION-C

• LanguageEnglish

• Power Supply

  12 VDC ± 25%, Max. 3.2 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Approval

• ProtectionIP67
